Master Thermal Imaging for Industrial Applications
Learn the fundamentals of thermal imaging technology and discover how it revolutionizes industrial maintenance, safety, and efficiency.
What is Thermal Imaging?
Thermal imaging is a non-contact technology that detects infrared radiation (heat) emitted by objects and converts it into visible images called thermograms. Every object with a temperature above absolute zero (-273.15°C / -459.67°F) emits infrared radiation.
Key Concepts:
- Infrared Radiation: Invisible electromagnetic radiation with wavelengths longer than visible light
- Thermography: The process of creating thermal images
- Temperature Measurement: Non-contact temperature assessment across surfaces
- Heat Patterns: Visual representation of temperature variations
Visible Light Image

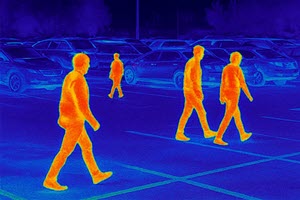

Thermal Image
The Science Behind Thermal Imaging
1. Electromagnetic Spectrum
Thermal cameras detect infrared radiation in the electromagnetic spectrum, typically in the range of 7-14 micrometers (long-wave infrared). This is invisible to the human eye but can be detected by specialized sensors.
2. Stefan-Boltzmann Law
The amount of thermal radiation emitted by an object is proportional to the fourth power of its absolute temperature. This fundamental physics principle enables thermal cameras to measure temperature accurately.
Power = σ × ε × A × T⁴
- σ = Stefan-Boltzmann constant (5.67 x 10⁻⁸)
- ε = Emissivity of the material
- A = Surface area
- T = Absolute temperature
🔥 Real-World Examples:
Electrical Hot Spot
A loose electrical connection at 80°C (176°F) vs normal operation at 40°C (104°F) radiates about 1.4 times more heat - enough for a thermal camera to easily detect the problem.
Your Body Heat
Your body (37°C / 98.6°F) vs room temperature (20°C / 68°F) - this small 17-degree difference means you radiate about 25% more heat energy than your surroundings, which is why thermal cameras can easily see people.
💡 Key Insight for Industrial Applications:
Small temperature increases create disproportionately large increases in thermal radiation. This means thermal cameras are incredibly sensitive to even minor equipment problems - a bearing that's just 20°C (36°F) hotter than normal will "glow" brightly in a thermal image, making problems easy to spot before they become failures.
3. How Thermal Cameras Work
Detection
Infrared detector array captures thermal radiation from the scene
Conversion
Electrical signals are generated proportional to the infrared energy
Processing
Signals are processed and converted to temperature values
Display
Temperature data is displayed as a color-coded thermal image
4. Emissivity
Emissivity is a material property that describes how efficiently an object emits thermal radiation. Understanding emissivity is crucial for accurate temperature measurements.
High Emissivity (0.8-0.95)
- Painted surfaces
- Oxidized metals
- Human skin
- Concrete
Low Emissivity (0.1-0.3)
- Polished metals
- Shiny surfaces
- Aluminum foil
- Chrome plating
💡 Key Insight for Industrial Applications:
Emissivity can make or break your thermal measurements! A shiny stainless steel pipe might read 50°C (122°F) when it's actually 150°C (302°F). For accurate readings on reflective surfaces, either apply high-emissivity tape/paint to a small area, or use the camera's emissivity compensation feature.
5. Distance and the Inverse Square Law
The intensity of thermal radiation decreases with the square of the distance from the source. This fundamental principle affects both measurement accuracy and safety when using thermal cameras in industrial settings.
Intensity = Power / (4π × Distance²)
- Intensity = Thermal radiation received by camera
- Power = Total thermal energy emitted by object
- Distance = Distance between object and camera
📏 Practical Distance Effects:
Measurement Accuracy
A thermal camera 1 meter from a hot bearing reads 80°C (176°F). Move to 2 meters away, and atmospheric absorption plus reduced signal may cause readings to drop to 75°C (167°F) - potentially missing critical temperature thresholds.
Spot Size Resolution
At 1 meter, your camera might resolve a 2cm spot. At 10 meters, that same camera can only resolve a 20cm area - you might miss small hot spots on electrical connections or bearing housings.
Atmospheric Interference
Water vapor, dust, and gases absorb infrared radiation. A furnace measured at 1000°C (1832°F) from 5 meters might read 950°C (1742°F) from 50 meters due to atmospheric absorption.
💡 Key Insight for Industrial Applications:
For mechanical equipment, get as close as safety allows - that extra meter of distance could mean the difference between detecting a failing bearing at 75°C (167°F) versus missing it entirely. When possible, establish standard inspection distances for each equipment type to ensure consistent, comparable results over time.
Industrial Applications
Electrical Inspections
Detect loose connections, overloaded circuits, and failing components before they cause failures or fires.
- Electrical panels and switchgear
- Power transmission lines
- Motor control centers
- Transformer inspections
Mechanical Systems
Monitor bearing temperatures, belt alignment, and mechanical wear in rotating equipment.
- Bearing monitoring
- Motor inspections
- Pump assessments
- Conveyor systems
Building Diagnostics
Identify energy losses, moisture intrusion, and structural issues in industrial facilities.
- Insulation defects
- Air leakage detection
- Roof moisture surveys
- HVAC system efficiency
Process Monitoring
Monitor industrial processes, furnaces, and high-temperature equipment for optimal performance.
- Furnace refractory inspection
- Heat exchanger monitoring
- Kiln assessments
- Pipeline monitoring
Value Proposition: Why Use Thermal Imaging?
💰 Cost Savings
- Preventive Maintenance: Identify problems before expensive failures occur
- Reduced Downtime: Schedule maintenance during planned outages
- Energy Efficiency: Locate energy losses and improve efficiency
- Extended Equipment Life: Address issues early to maximize asset lifespan
🛡️ Safety Improvements
- Non-Contact Inspection: Inspect energized equipment safely
- Fire Prevention: Detect hot spots before they become fires
- Arc Flash Risk Reduction: Identify electrical issues without opening panels
- Worker Safety: Inspect dangerous or hard-to-reach areas remotely
📊 Operational Excellence
- Data-Driven Decisions: Make maintenance decisions based on actual conditions
- Trending Analysis: Track equipment health over time
- Quality Assurance: Verify proper installation and operation
- Compliance: Meet regulatory requirements for equipment monitoring
Return on Investment (ROI)
Positive ROI Potential
Well-implemented thermal imaging programs typically generate positive returns through prevented failures and optimized maintenance scheduling.
Early Problem Detection
Identifies developing issues before they become costly failures, allowing for planned maintenance during scheduled downtime.
Measurable Improvements
Provides quantifiable data for maintenance decisions and helps track equipment health trends over time.
Note: Actual ROI varies significantly based on facility size, equipment criticality, current maintenance practices, and program implementation quality. Consult with thermal imaging professionals to develop realistic projections for your specific application.
Test Your Knowledge
Thermal Imaging Knowledge Quiz
Test your understanding of thermal imaging concepts, science, and applications.
References and Citations
Educational Disclaimer: This guide presents general principles and concepts of thermal imaging for educational purposes. No specific ROI claims are made, as actual results vary significantly based on implementation, industry, and facility conditions. For authoritative information, current research, and specific ROI projections, please consult the professional resources listed below and work with certified thermal imaging professionals.
� Professional Organizations & Standards
ASNT (American Society for Nondestructive Testing)
Website: https://www.asnt.org
Resources: Professional certification, training materials, and standards for thermal imaging and infrared thermography.
ASTM International
Website: https://www.astm.org
Relevant Standards:
• ASTM E1933 - Standard Guide for Measuring and Compensating for Emissivity
• ASTM E1862 - Standard Test Methods for Measuring and Compensating for Reflected Temperature
ISO (International Organization for Standardization)
Website: https://www.iso.org
Relevant Standards: ISO 18434-1 - Condition monitoring and diagnostics of machines
NETA (InterNational Electrical Testing Association)
Website: https://www.netaworld.org
Resources: Electrical maintenance and testing standards, including thermal imaging applications for electrical systems.
🔬 Scientific & Technical Resources
NIST (National Institute of Standards and Technology)
Website: https://www.nist.gov
Resources: Temperature measurement standards, infrared thermometry guidelines, and calibration procedures.
IEEE (Institute of Electrical and Electronics Engineers)
Website: https://www.ieee.org
Resources: Technical papers and standards related to infrared technology and electrical applications.
Stefan-Boltzmann Law - Physics References
Physics Education Resources:
• HyperPhysics - Georgia State University
• Khan Academy - Thermodynamics
Formula: P = σεAT⁴ (Fundamental physics principle for thermal radiation)
� Educational & Industry Resources
Infrared Training Center (ITC)
Website: https://www.infraredtraining.com
Resources: Professional thermal imaging training, certification programs, and technical resources.
Predictive Maintenance Resources
Websites:
• Reliable Plant Magazine
• Maintenance World
• Plant Maintenance Resource Center
Content: Industry articles, case studies, and best practices for thermal imaging in maintenance applications.
Thermal Imaging Equipment Manufacturers
Technical Resources:
• FLIR Systems - Predictive Maintenance
• Fluke Corporation - Thermal Cameras
• Testo - Thermal Imaging
Content: Application guides, technical specifications, and case studies from leading thermal imaging equipment manufacturers.
� Research & Case Studies
Academic Research Databases
Resources:
• Google Scholar - Search "thermal imaging predictive maintenance ROI"
• ResearchGate - Academic papers on thermal imaging applications
• IEEE Xplore - Technical papers on infrared thermography
Industry Reports & Whitepapers
Note: Specific ROI figures vary widely based on industry, application, and implementation quality. For current market research and ROI studies, consult:
• Industry analyst reports (Frost & Sullivan, MarketsandMarkets)
• Equipment manufacturer case studies and whitepapers
• Professional maintenance association publications
⚠️ Important Notes for Implementation
- Training Required: Effective thermal imaging requires proper training in equipment operation, image interpretation, and safety procedures.
- Environmental Factors: Results can be affected by ambient temperature, humidity, wind, and reflected radiation sources.
- Equipment Limitations: Camera resolution, sensitivity, and calibration affect measurement accuracy and detection capabilities.
- Cost Considerations: Initial equipment costs, training expenses, and ongoing calibration requirements should be factored into ROI calculations.
- Professional Consultation: For critical applications, consult with certified thermographers and equipment manufacturers for specific recommendations.
📖 Educational Purpose
This website is designed for educational purposes to introduce the fundamental concepts of thermal imaging in industrial applications. The information provided represents general principles and typical industry practices. For specific applications, always consult with qualified professionals, refer to equipment manufacturer specifications, and follow applicable safety standards and regulations.
Target Audience: Industrial professionals new to thermal imaging technology
